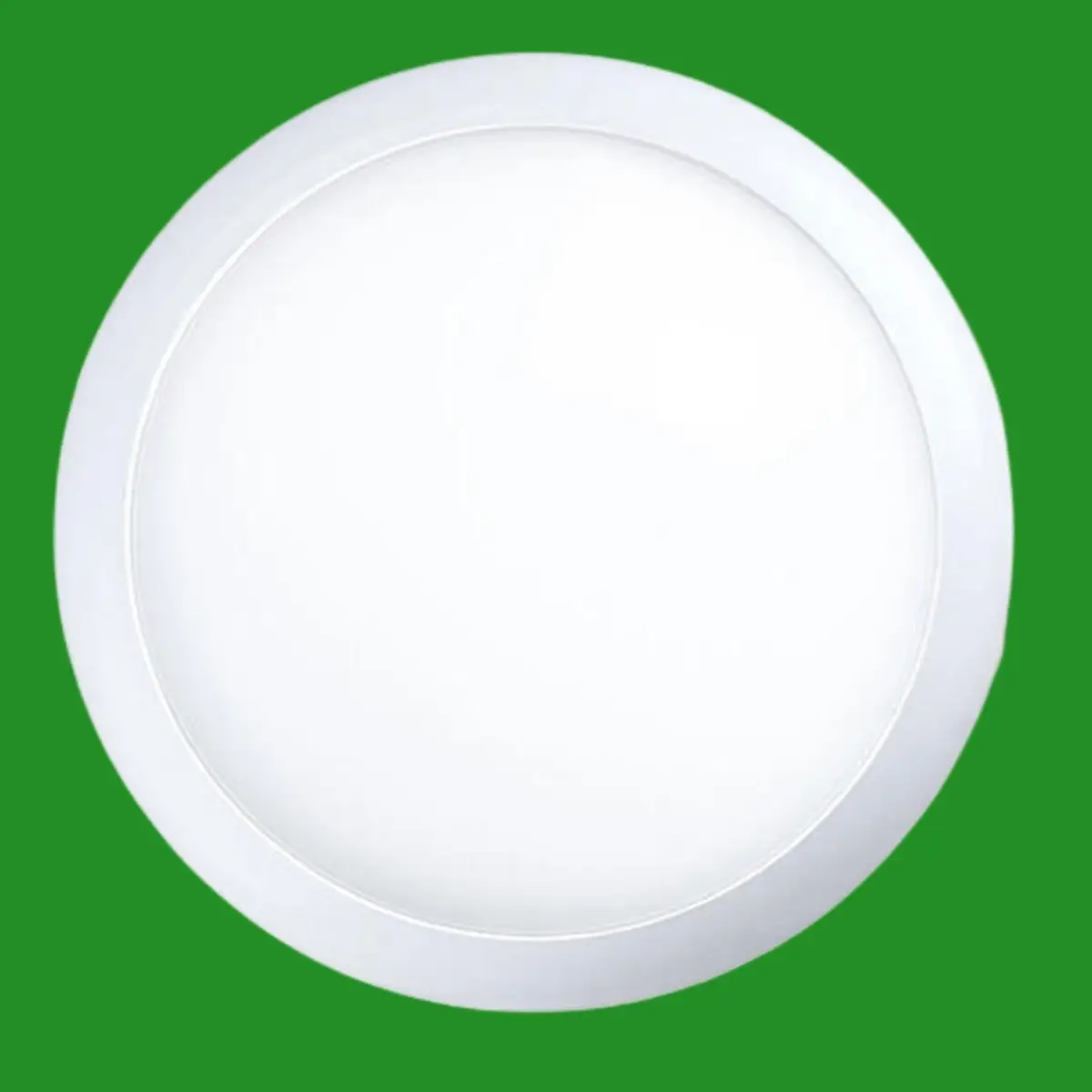

12W 4000K LED IP65 Bulkhead With Rim JCC RadiaLED Rapid JC070075
Toolless Quick Installation Design
Brand New
This bulkhead is approximately 340mm x 98mm.

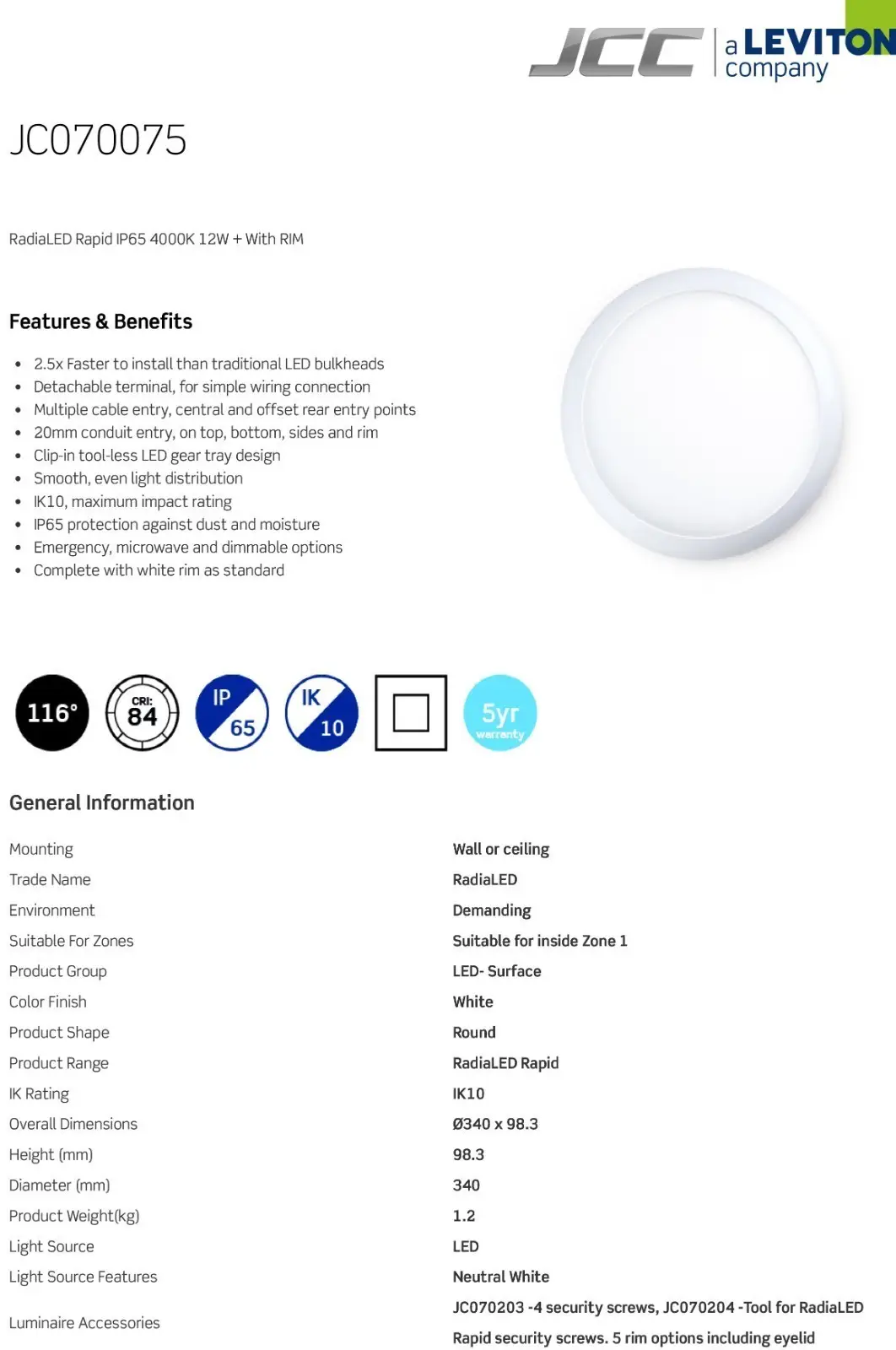

RadiaLED Rapid 12W LED Bulkhead | 4000K | IP65 with rim
JC070075

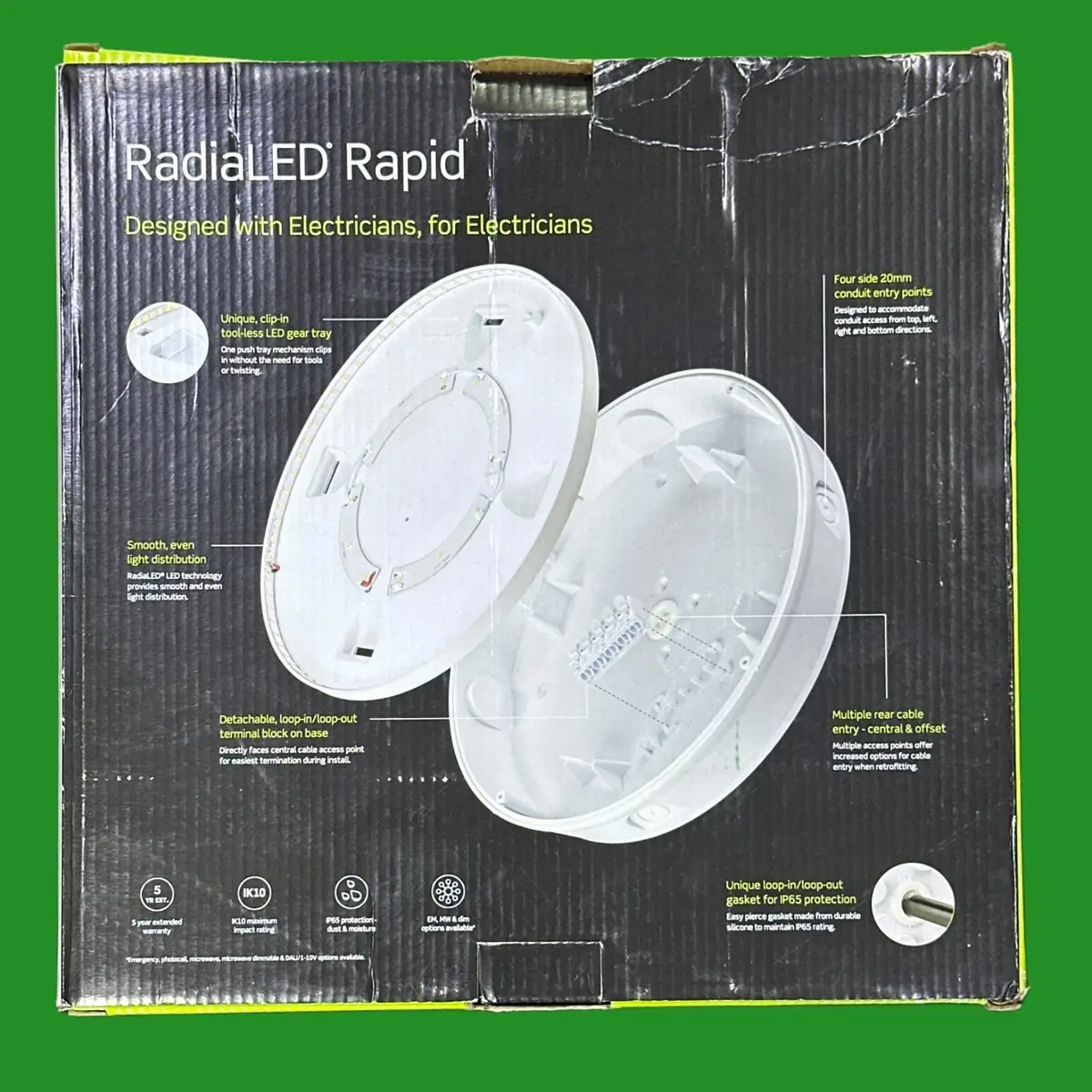

2.5x faster to install than traditional LED bulkheads

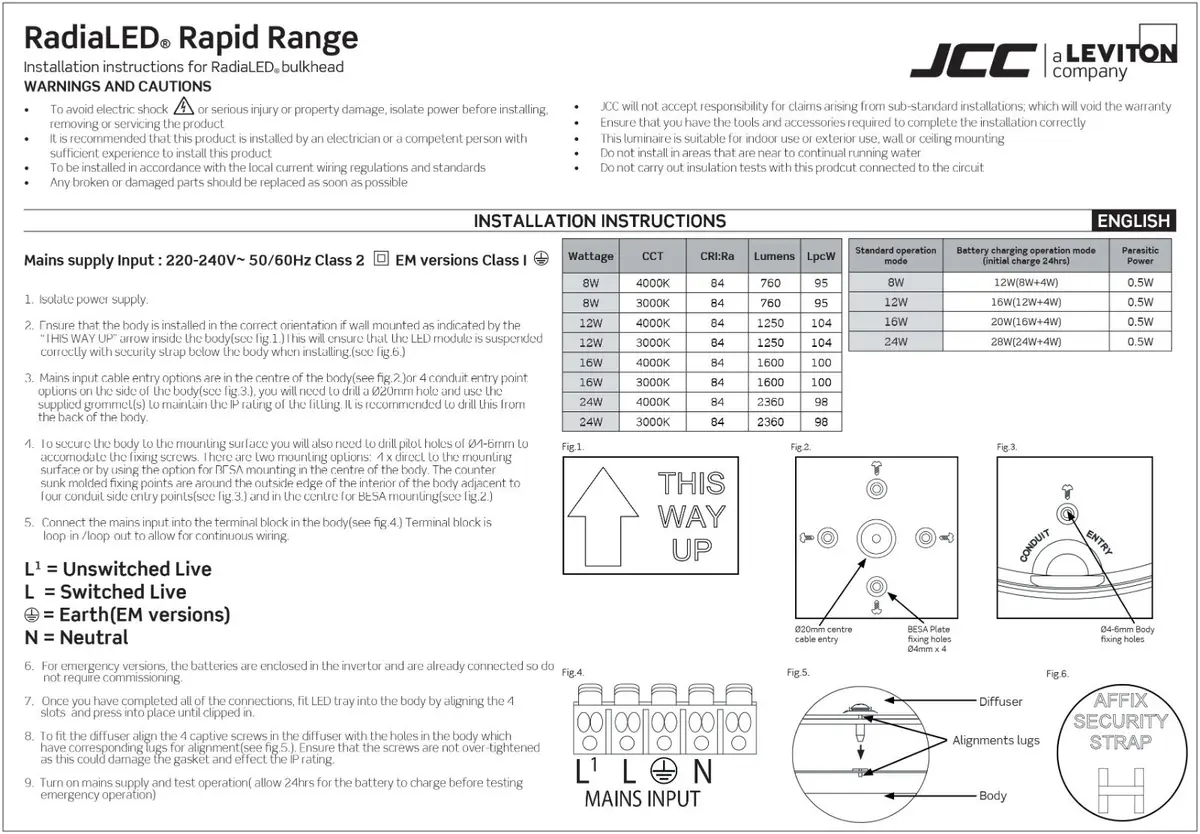

Detachable terminal, for simple wiring connection
Multiple cable entry, central and offset rear entry points 20mm conduit entry, on top, bottom, sides and rim

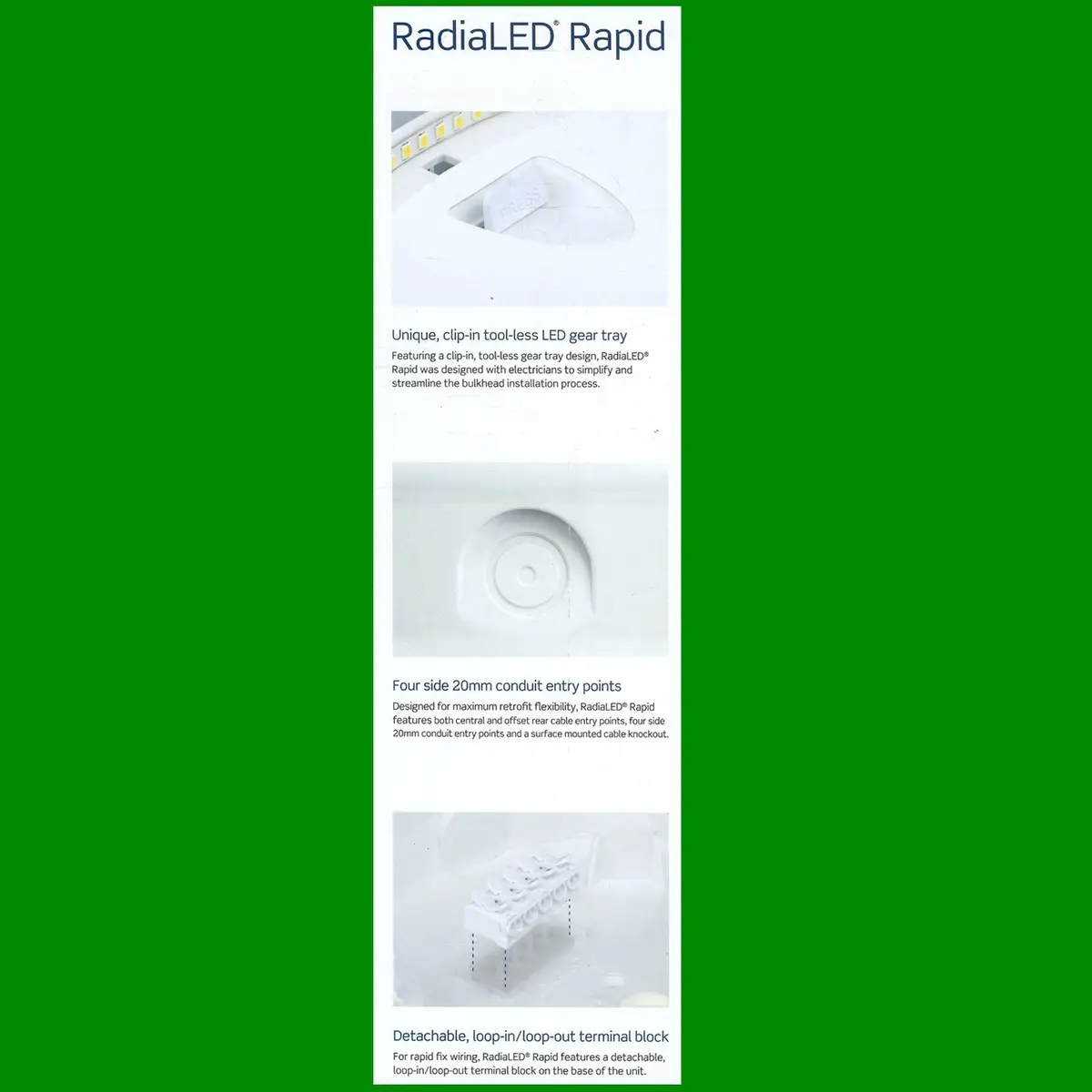

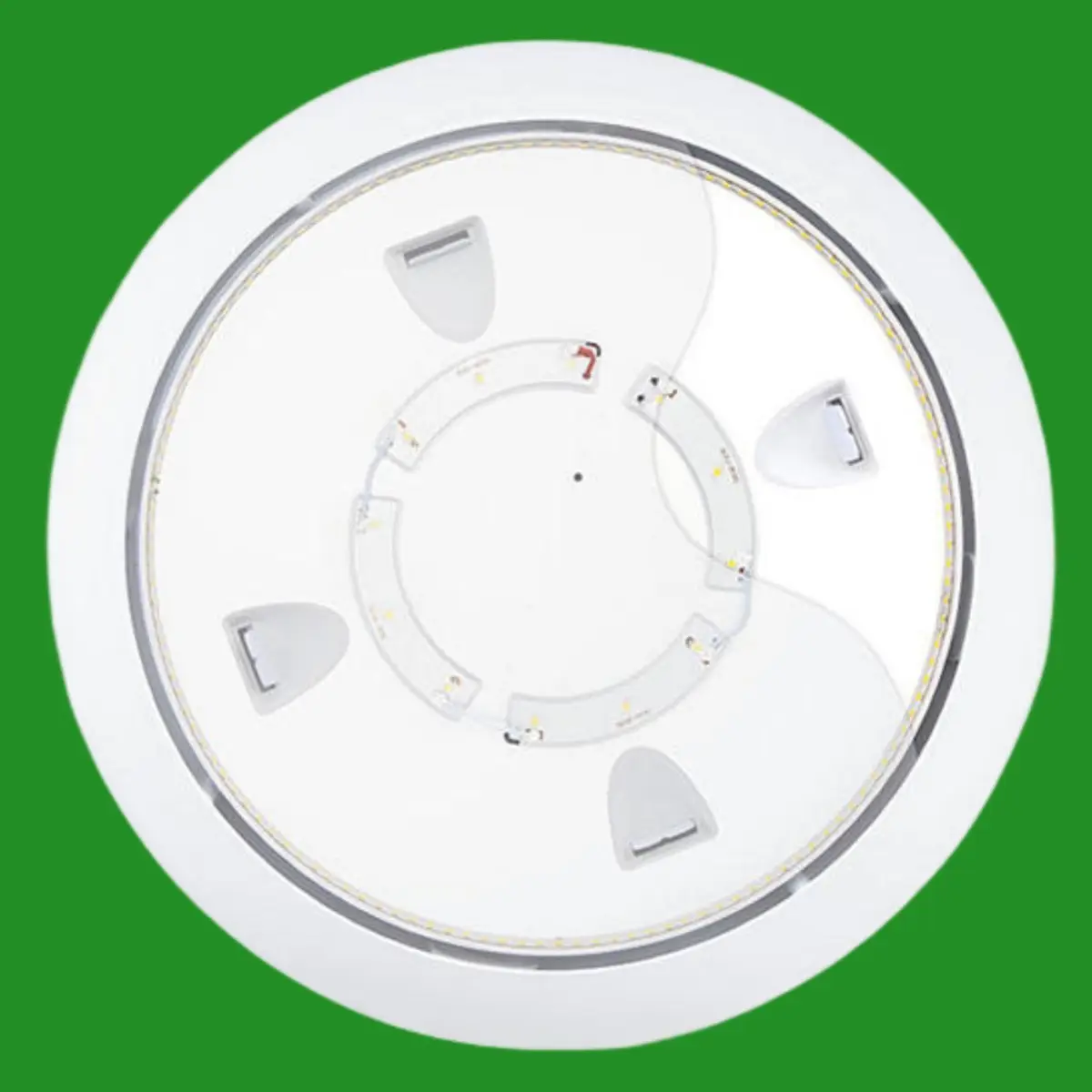

Clip-in tool-less LED gear tray design
Smooth, even light distribution
IK10, maximum impact rating
IP65 protection against dust and moisture
Emergency, microwave and dimmable options
Complete with white rim as standard

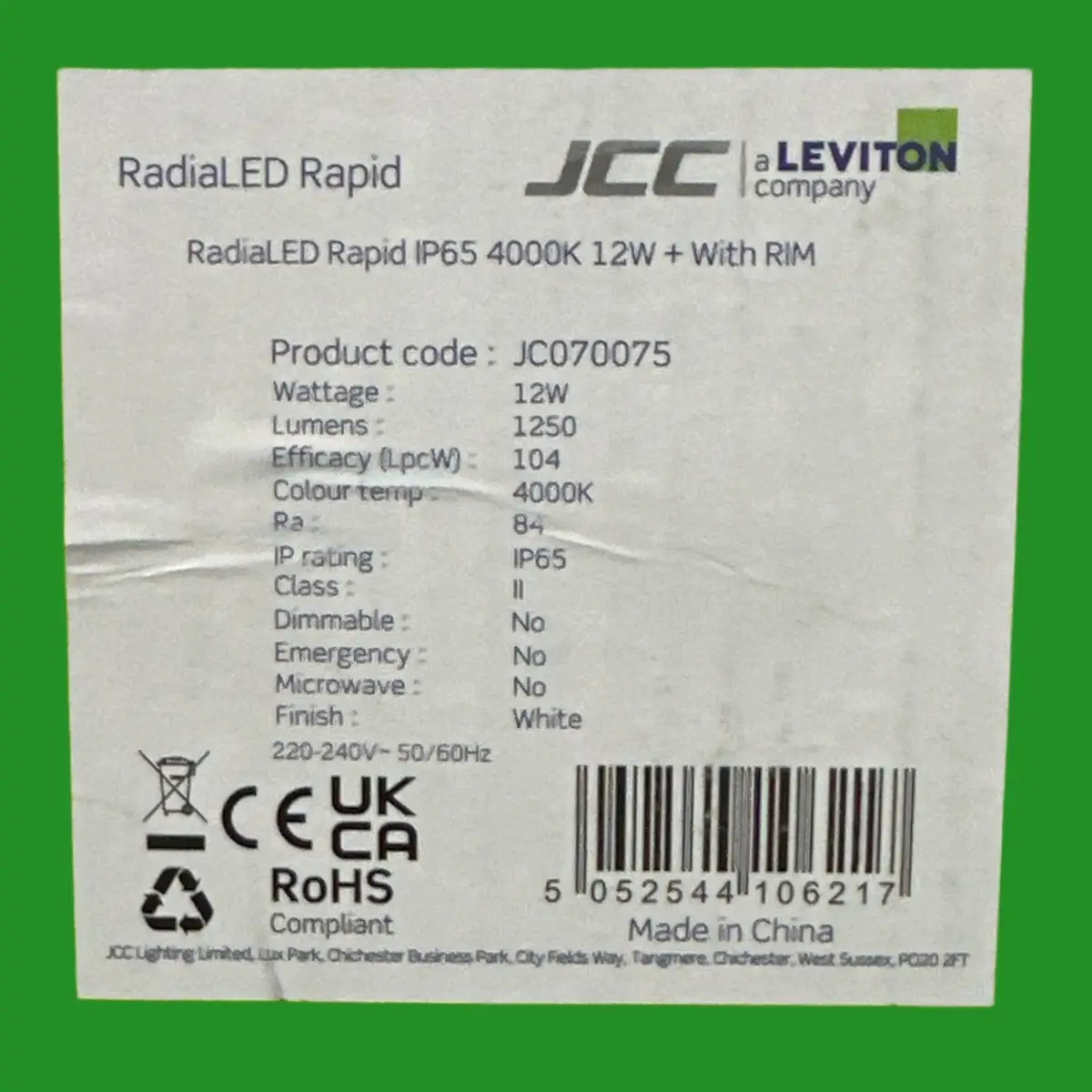

Technical Information
Electrical
Class : II
Dimmable : No
Luminaire Circuit Wattage : 12
Voltage Rating : 220-240
General Information
IP Rating : IP65
Light Source Features : Neutral White
Luminaire Accessories : JC070203 -4 security screws, JC070204 -Tool for RadiaLED Rapid security screws. 5 rim options including eyelid
Method of fix : Back screw fix or BESA plate mounting
Mounting : Wall or ceiling

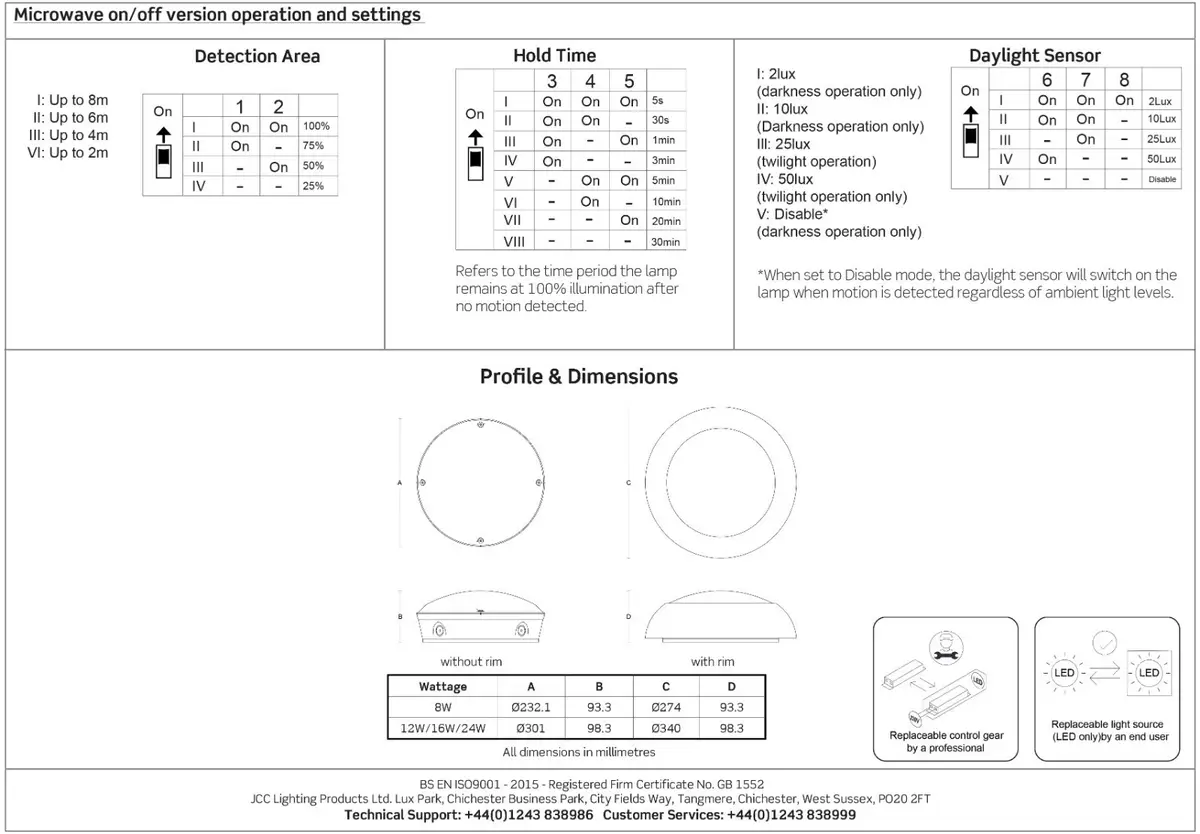

Overall Dimensions : Ø340 x 98.3
Trade Name : RadiaLED
Warranty : 5 Year Warranty
Performance Data
Actual Lumen Output : 1250
Beam Angle ° : 116
CRI: Ra : 84
Correlated ColoUr Temperature : 4000
Lumens Per Circuit Watt : 104
Thermals
Operating Temperature Range °C : 0 to +45
IP65 means (IP = Ingress Protection Marking) This means no ingress of dust; complete protection against contact (dust tight) & also from water jets i.e. water projected by a nozzle (6.3 mm) against enclosure from any direction shall have no harmful effects.
Users should ensure that correct items, of appropriate voltage & wattage, are used and should consult a suitably qualified electrical engineer if unsure. We sell items on many international sites and supply over the world, so it is for the buyer to ensure that the legislation requirements of their locality are met with the products they desire to purchase. The regulations vary from country to country. As it is possible to view this item on a particular country’s site but purchase from another country or buyer to take it with them on their international travels, we are unable to give definitive guidelines for every locality.
In stock now, fast delivery.
Price is VAT inclusive – VAT invoice dispatched with goods.
