Limited Stock – Check Availability
We have very limited stock of this item. Please contact us to confirm availability before ordering.

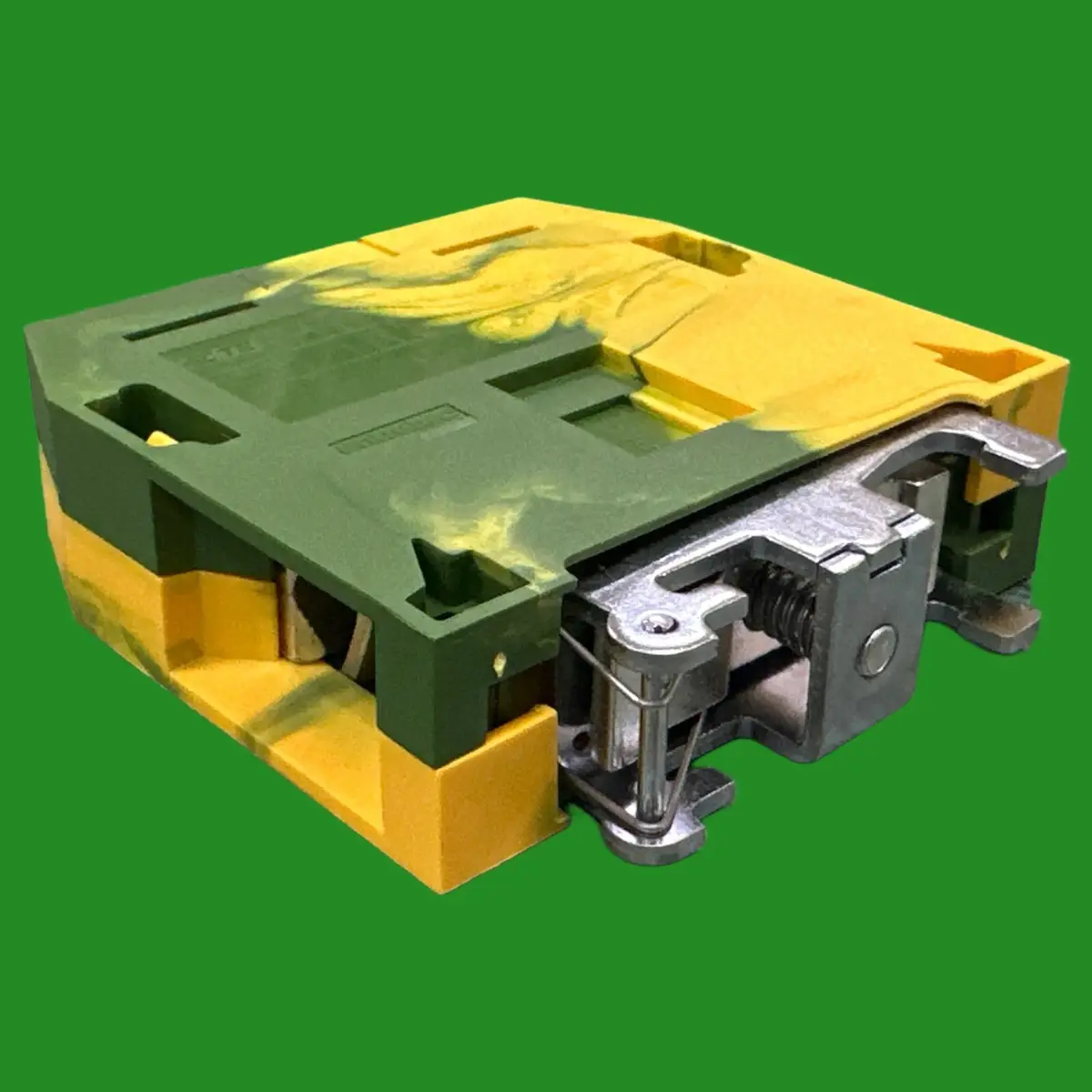

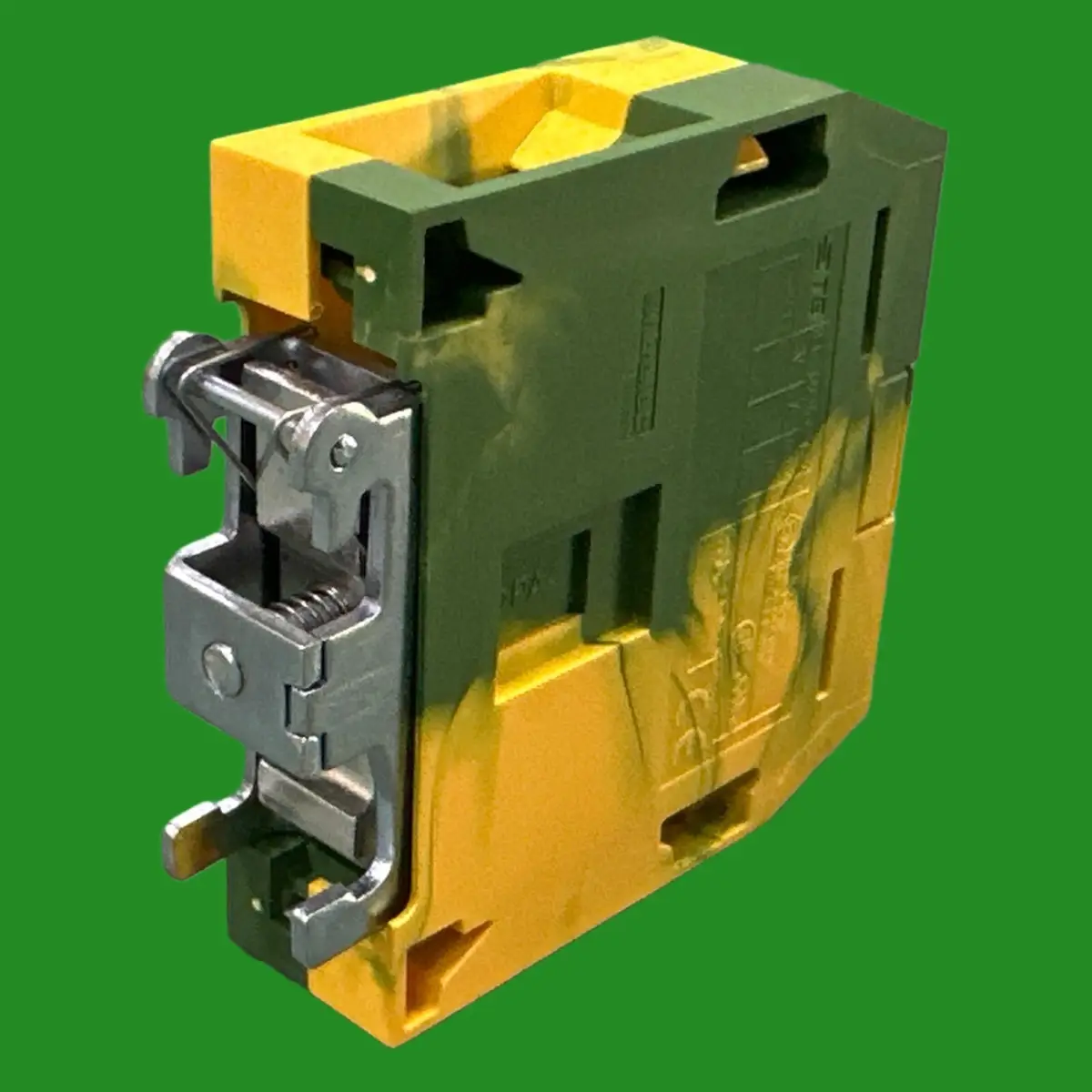

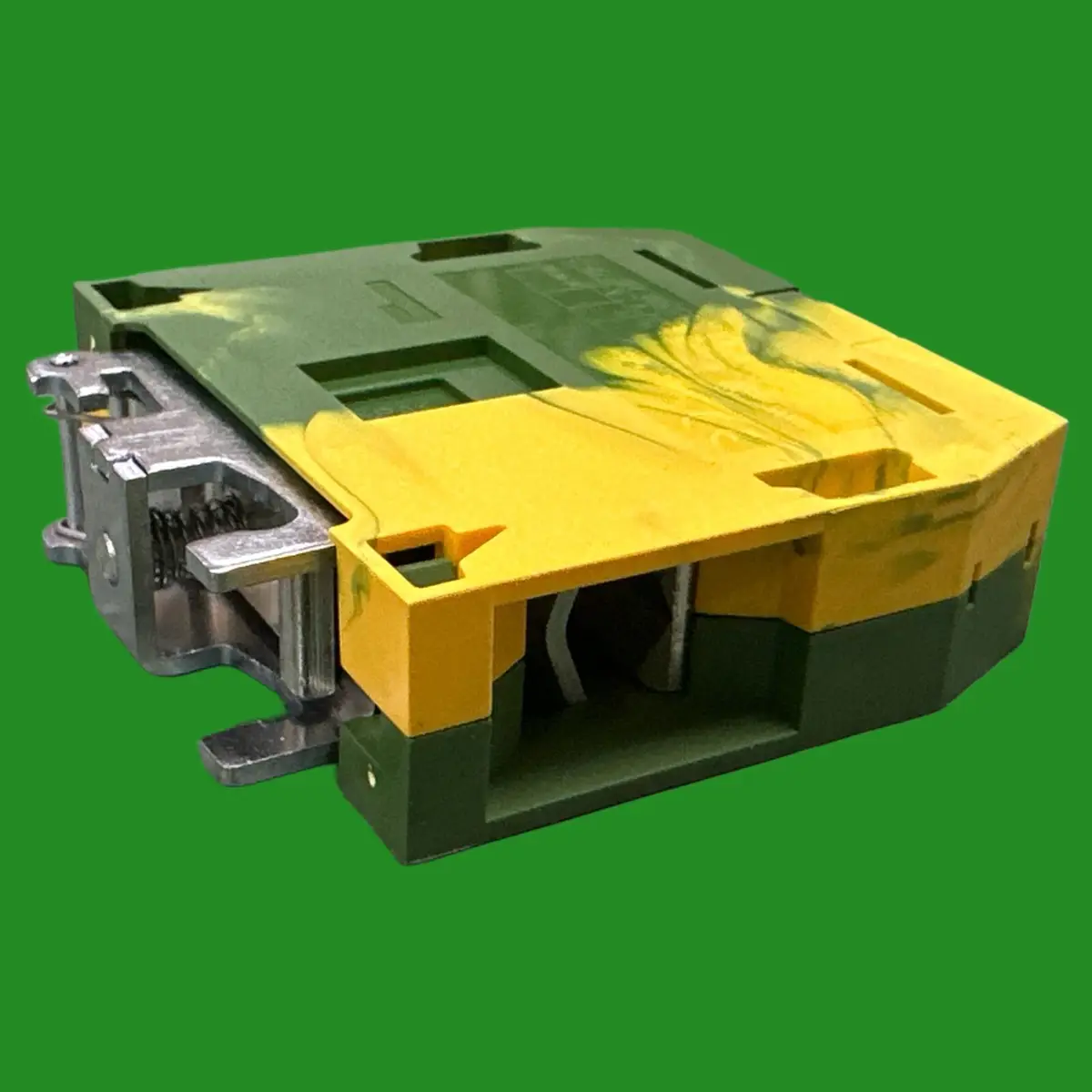

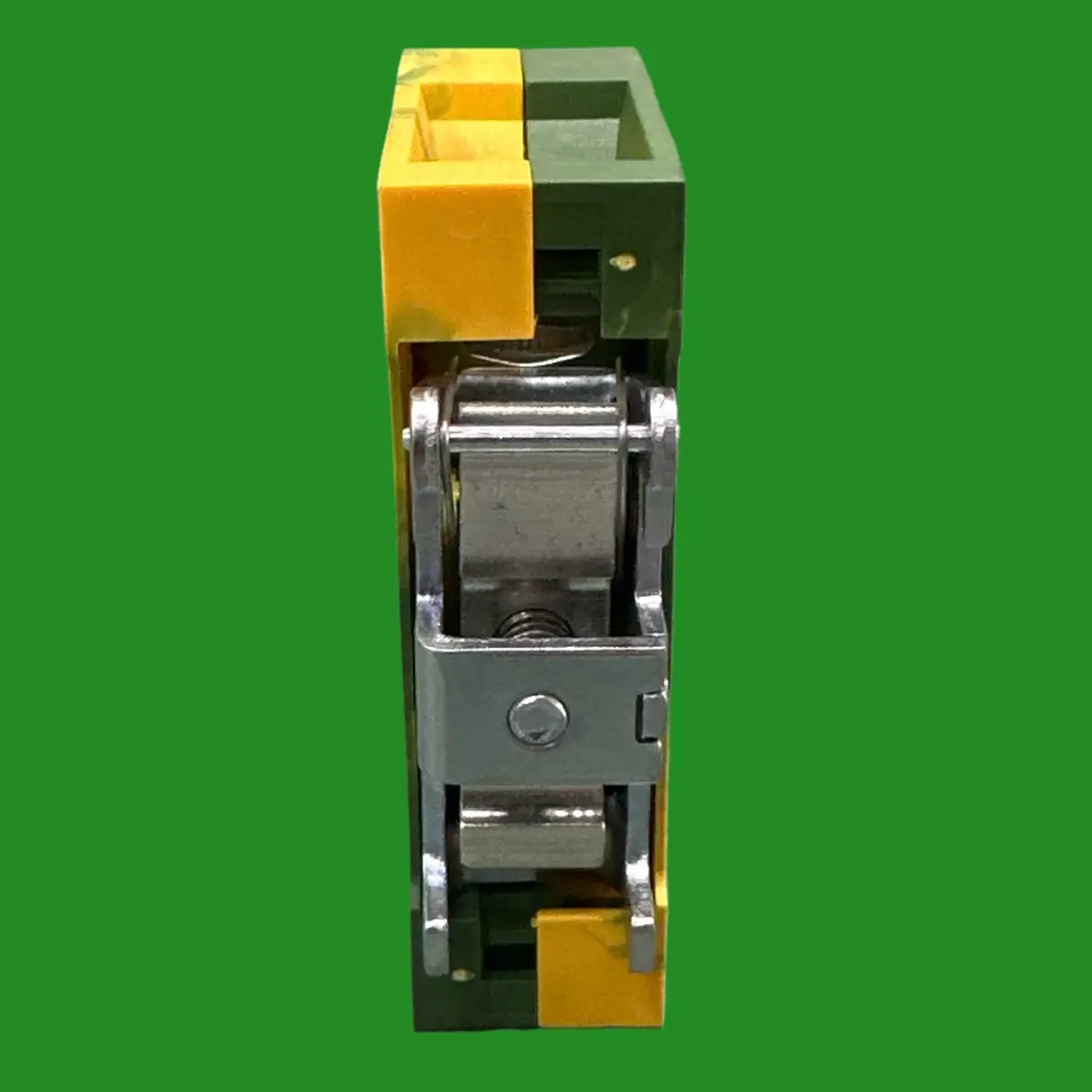

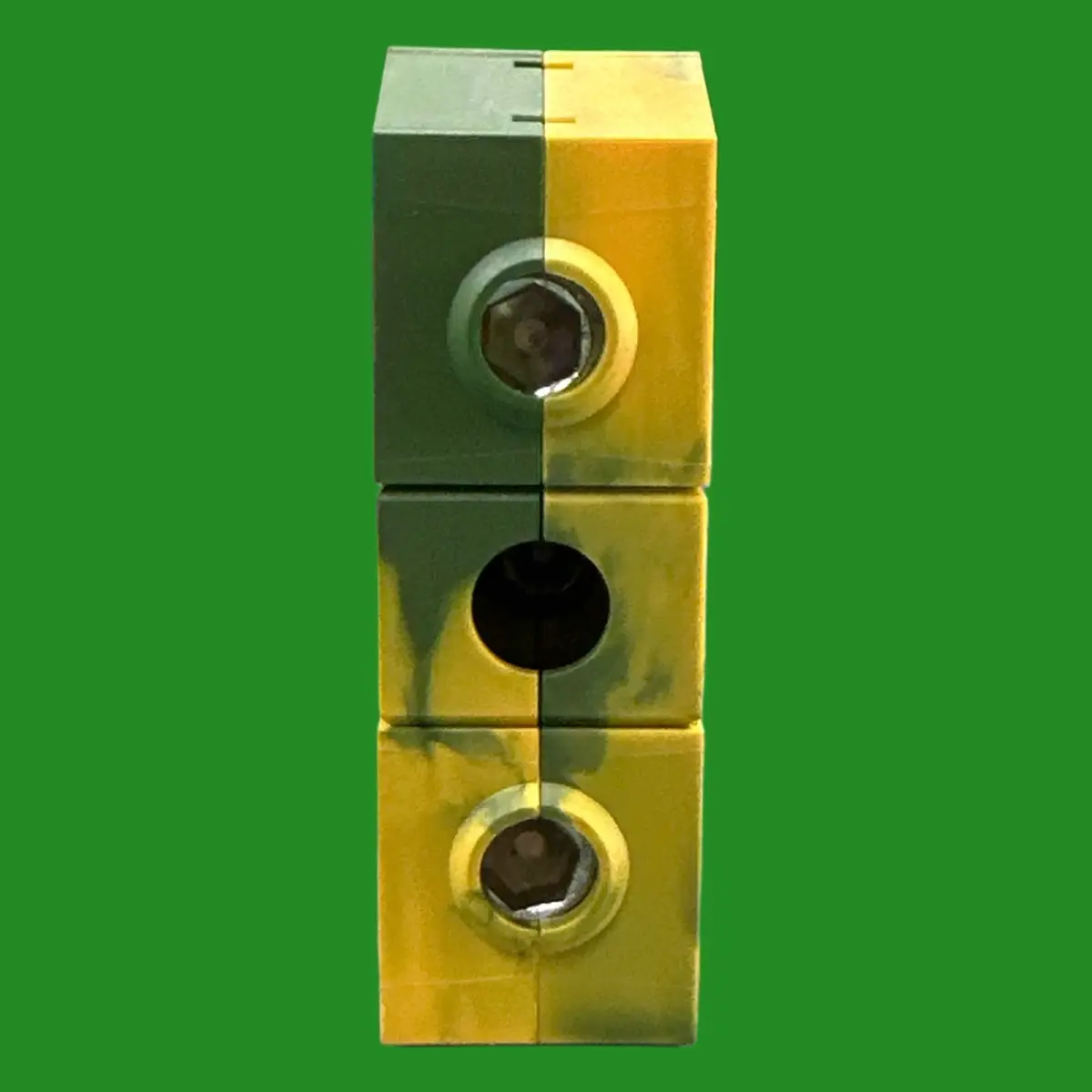

1x Entrelec DIN Rail Ground Terminal Block 1SNK522150R0000 Green Yellow
Brand New
Ground, Green Yellow.
Screw Clamp Terminal Block, Ground, Green & Yellow, 22 mm [.866 in] Spacing, 2 Position, Screw Terminal, Power & Signal, DIN Rail
Product Type Features
Modular Terminal Block Product Type?:Screw Clamp Terminal Block
Configuration Features
Number of Circuits?:1
Gauge Type?:B11
Number of Levels?:1
Block Function?:Ground
Number of Positions?:2
Electrical Characteristics
Short-Time Withstanding Current Rating @ 1s?(A):8400
Dielectric Withstanding Voltage (Max)?(V):2200
Impulse Withstanding Voltage Rating (IEC)?(V):8000
Body Features
Product Weight?:222?g?[?8.74?oz?]
Primary Product Color?:Green & Yellow
Termination Features
Termination Method to Wire & Cable?:Screw Terminal
Mechanical Attachment
DIN Rail Mounting Type?:TH35-15
Connector Mounting Type?:DIN Rail
Housing Features
Housing Material?:Polyamide
Dimensions
Product Height?:74?mm?[?2.913?in?]
Product Length?:68.8?mm?[?2.71?in?]
Main Circuit Capacity – 1 Insulated Ferrule per Screw Clamp?(mm²):16 – 50
Main Circuit Capacity – 1 Flexible Conductor per Screw Clamp?(mm²):16 – 70
Main Circuit Capacity – 1 Non-Insulated Ferrule per Screw Clamp?(mm²):16 – 50
Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp?(AWG):4 – 00
Main Circuit Capacity – 1 Rigid Stranded Conductor per Screw Clamp?(mm²):16 – 95
Main Circuit Capacity – 2 Flexible Conductors per Screw Clamp?(mm²):16 – 35
Main Circuit Capacity – 2 Rigid Stranded Conductors per Screw Clamp?(mm²):16 – 35
Wire Stripping Length?:25?mm?[?.984?in?]
Product Depth?:77.1?mm?[?3.035?in?]
Product Spacing?:22?mm?[?.866?in?]
Wire Size?(AWG):2/0
Wire Size?(mm²):70
Usage Conditions
Installation Temperature Range?:-5 – 40?°C?[?23 – 104?°F?]
Operating Temperature Range?:-55 – 110?°C?[?-67 – 230?°F?]
Operation/Application
Circuit Application?:Power & Signal
Industry Standards
UL Flammability Rating?:UL 94V-0
In stock now, fast delivery.
Price is VAT inclusive – VAT invoice dispatched with goods.
