Only 1 item left in stock!

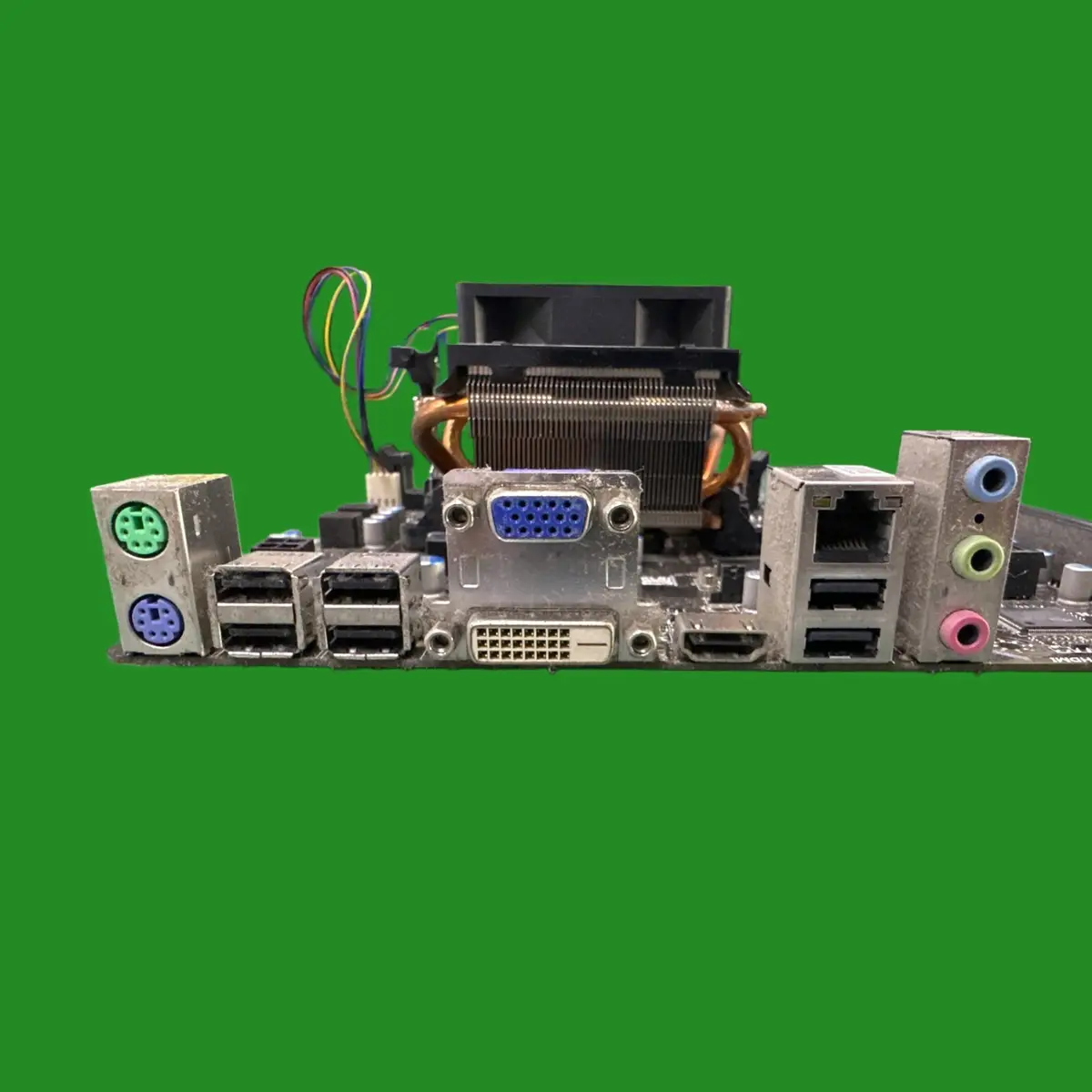

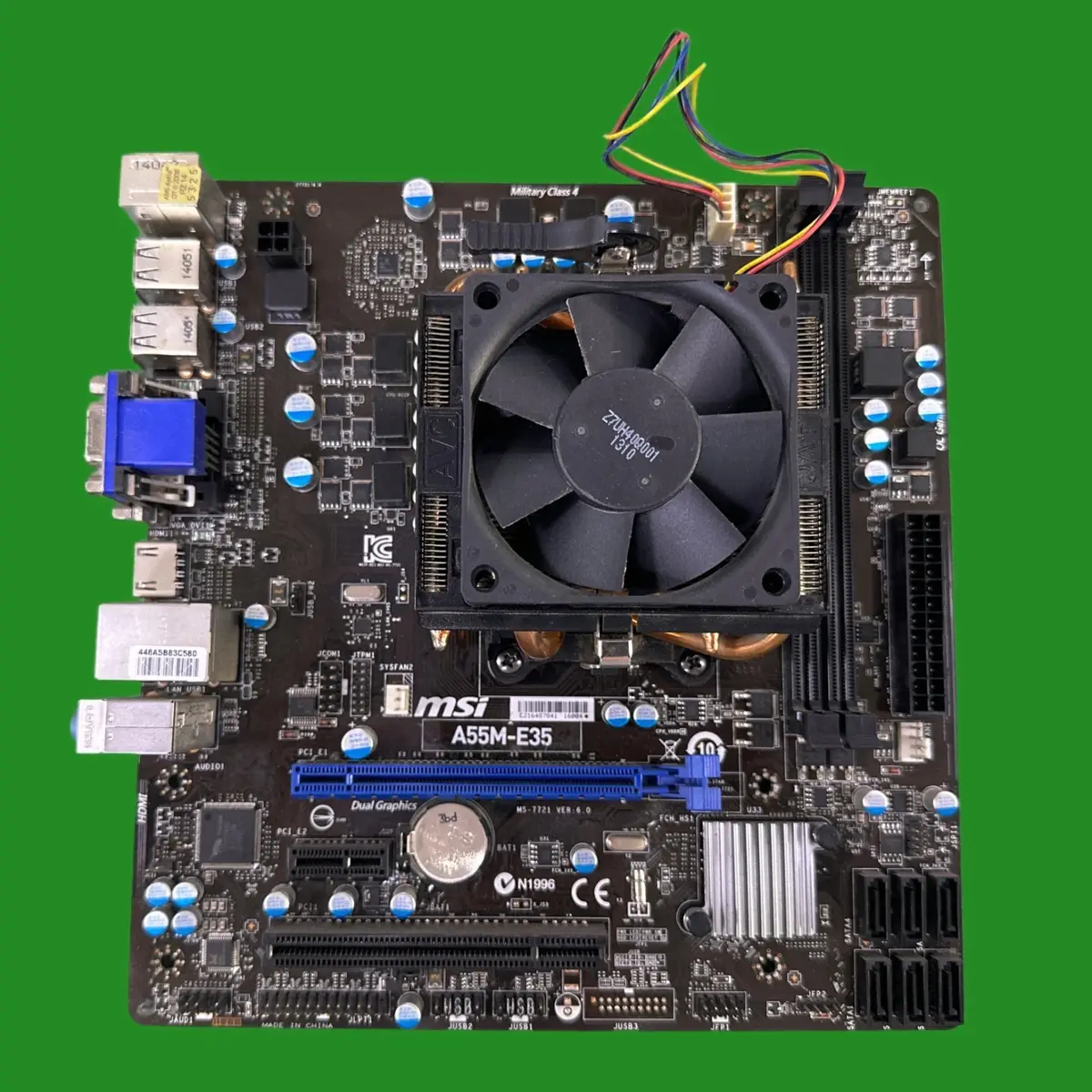

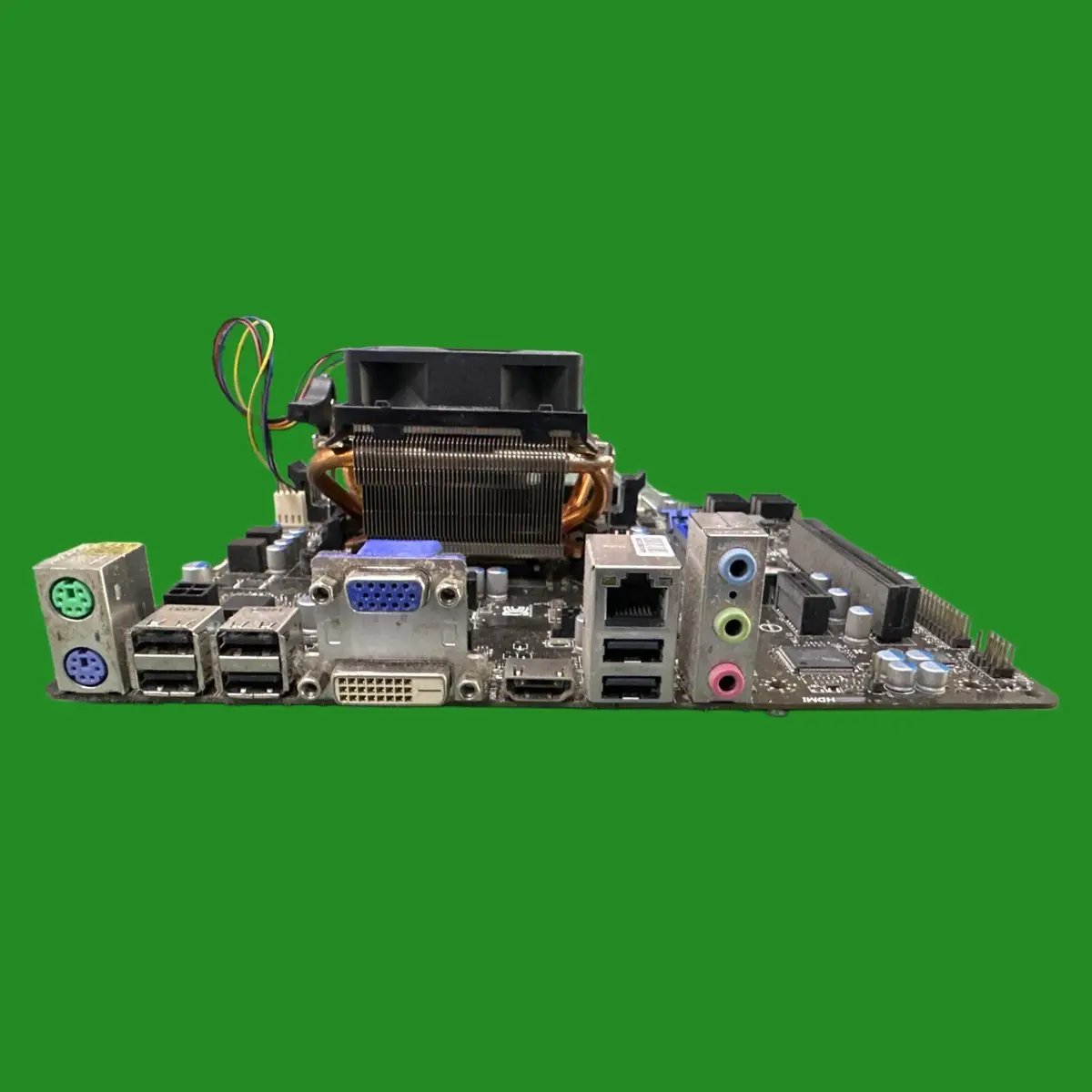

MSI A55M-E35 Motherboard AMD FM2 FM2+ Micro-ATX & AMD A8 6600K 3.9Ghz CPU & Fan
Used, testing and working

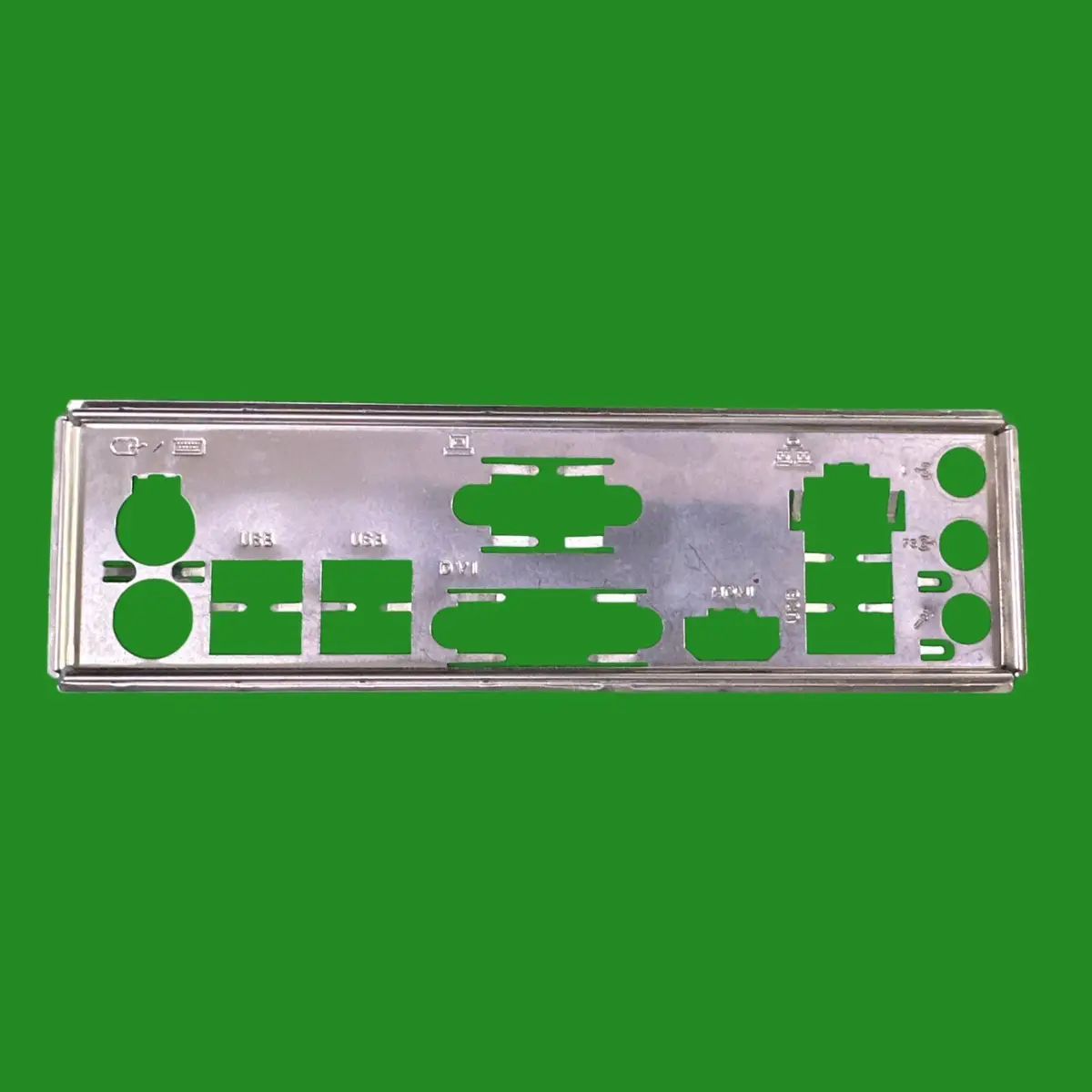

Please note only the motherboard, CPU, IO Backplate and Fan are included.
RAM is not included.
Specifications
CPU
• AMD® A-Series/Athlon™ Processors* for the FM2+ package
* Also support FM2 A-Series/Athlon™ Processors
* Please refer to CPU Support for compatible CPU; the above description is for reference only.
Chipset
• AMD® A55 Chipset
Main Memory
• 2 x DDR3 memory slots supporting up to 32GB
• Supports DDR3 1333/1600/1866/2133*(*OC) MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports AMD Memory Profile (AMP)
• Supports Extreme Memory Profile (XMP)
* Don’t support DDR3 2133 nativity, but supports it when overclocking.
* For the support status of AMP/XMP memory modules, please take MSI’s Memory Support list as reference.
Slots
• 1 PCI Express 3.0 x16 slot*
• 1 PCI Express 2.0 x1 slot
• 1 PCI slot
* Only FM2+ processors can support PCIe 3.0
Graphics
• 1 x VGA port, supporting a maximum resolution of 1920×1200 @ 60Hz, 24bpp
• 1 x DVI-D port, supporting a maximum resolution of 2560×1600@60Hz, 24bpp/ 1920×1200 @ 60Hz, 24bpp
• 1 x HDMI™ port, supporting a maximum resolution of 4096×2160@24Hz, 36bpp*/ 3840×2160@30Hz, 36bpp*/ 1920×1200@120Hz, 36bpp and 1920×1200@60Hz, 36bpp
* Only support when using an FM2+ APU
On-Board SATA
• 6 x SATA 3Gb/s ports by AMD® A55
– Supports storage and data transfers at up to 3Gb/s
– SATA1~6 ports support RAID 0/1/10 modes by AMD® A55
Audio
• Chipset integrated by Realtek® ALC887
– Flexible 8-channel audio with jack sensing
– Compliant with Azalia 1.0 Spec
LAN
• Supports Gigabit LAN by Realtek® RTL8111G
– Supports 10Mb/s, 100Mb/s and 1000Mb/s
– Compliance with PCI-Express Bus specification v1.0a
Internal I/O Connectors
– 1 x 24-pin ATX main power connector
– 1 x 4-pin ATX 12V power connector
– 6 x SATA 3Gb/s connectors
– 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connector
– 1 x 3-pin system fan connector
– 1 x Front panel audio connector
– 2 x System panel connectors
– 1 x Chassis Intrusion connector
– 1 x TPM module connector
– 1 x Serial port connector
– 1 x Parallel port connector
– 1 x Clear CMOS jumper
– 2 x USB power jumpers
Back Panel I/O Ports
– 1 x PS/2 keyboard port
– 1 x PS/2 mouse port
– 6 x USB 2.0 ports
– 1 x VGA port
– 1 x DVI-D port
– 1 x HDMI™ port
– 1 x LAN (RJ45) port
– 3 x audio jacks
* This platform supports dual-display function (HDMI™+VGA, HDMI™+DVI, VGA+DVI) and triple-display function (HDMI™+VGA+DVI)
In stock now, fast delivery.
Price is VAT inclusive – VAT invoice dispatched with goods.
